KA diaphragm strain gages

產品編號:KA diaphragm strain gages

產品描述:Diaphragm strain gages for pressure transducer

咨詢

產品介紹:

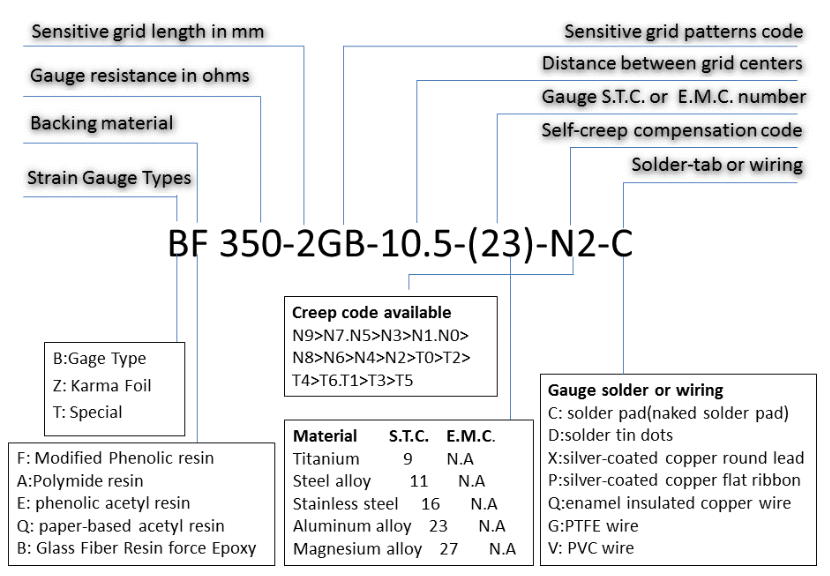

Ordering code:

specification	BF series	BA series	ZF series
nominal resistance(Ω)	3,506,501,000	3,506,501,000	3,506,501,000
tolerance of resistance	<±0.1%	<±0.1%	<±0.1%
gauge factor	2.00~2.20	1.86~2.20	1.86~2.40
gauge factor resistance	<±1%	<±1%	<±1%
strain limit	2.00%	2.00%	2.00%
fatigue life	>10⁷	>10⁷	>10⁸
effective modulus compensation	not available	not available	aluminum(23)
metal foil	constantan alloy	karma alloy	constantan alloy
creep compensation	available	available	available
working temperature range	-30~+80℃	-30~+150℃	-30~+80℃
temperature compensation	titanium(9), mild steel(11), stainless steel(16), aluminium(23), magnesium(27), plexiglass(65)
curing temperature	135℃(curing process) 165℃(post curing process)

MODEL	GRID DIM	BACKING DIM	CREEP	Distance to Center mm
MODEL	GRID DIM	BACKING DIM	CREEP	Distance to Center mm
BF350-9KA	Φ9.0	Φ10
BF350-10KA	Φ9.0	Φ10
ZF1000-10KA	Φ9.0	Φ10
BF350-15KA	Φ14.2	Φ15
ZF1000-15KA	Φ14.2	Φ15
BF350-20KA	Φ19	Φ20
ZF1000-20KA	Φ19	Φ20
ZF350-20KA	Φ19	Φ20
ZF1000-7KA	Φ7.0	Φ9.9
ZF1000-13KA	Φ12.2	Φ13
ZF1000-14KA	Φ13	Φ14
ZF1650-13KA	Φ9.8	Φ13
ZF2000-14KA	Φ13.5	Φ14.2
ZF2000-18KA	Φ17.8	Φ18.2
