BC strain gages for stress analysis

產品編號:BC

產品描述:strain gages for stress analysis

咨詢

產品介紹:

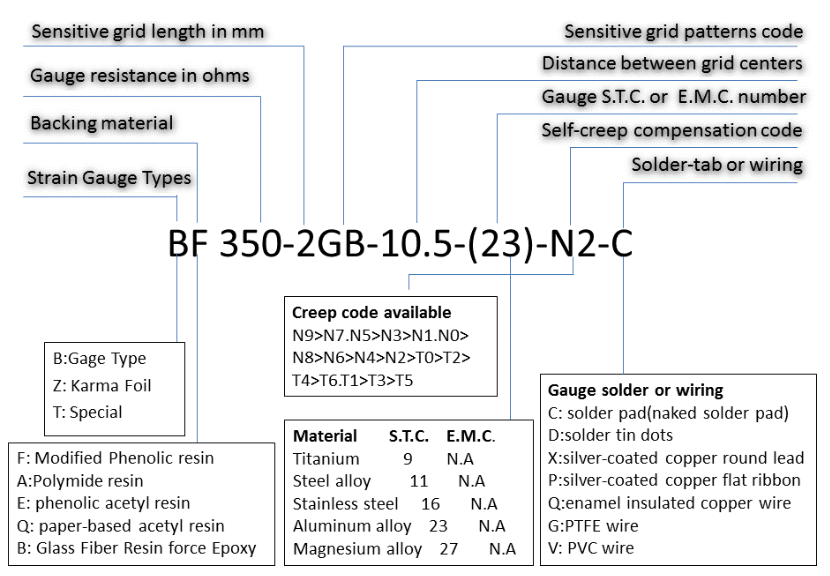

Ordering code:

BE series

BA series

BQ series

phenolic acetyl resin backing, constantan alloy,

encapsulated gauges with

temperature compensation

good flexibility for installation

used for 005% FS accuracy

transducers and stress analysis.

polyamide resin backing, constantan alloy, encapsulated gauges with temperature, compensation, higher elongation, good humidity resistance & electric insulation performance, wide

application temperature range, suitable for precision stress analysis within 150℃

paper based acetyl resin

backing constantan alloy

open-faced gauges. thinner and soft backing make the gauges, easy to be bonded, suitable for general stress analysis, especially for stress analysis of composed material or concrete

material.

specification	BE series	BA series	BQ series
nominal resistance	60,120,350,650	120,350	120
tolerance of resistance	<±0.1%	<±0.1%	<±0.1%
gauge factor	2.00~2.20	1.86~2.20	1.86~2.40
gauge factor resistance	<±1%	<±1%	<±1%
strain limit	2.00%	2.00%	2.00%
fatigue life	>10⁷	>10⁷	>10⁷
metal foil	constantan alloy	constantan alloy	constantan alloy
backing material	phenolic acetyl resin	polyamide resin	paper-based acetyl resin
cover material, or surface protection	phenolic acetyl cover	phenolic acetyl cover	acetyl-resin surface protective coating
working temperature range	-30~+80℃	-30~+80℃,-80~+150℃	-30~+80℃
temperature compensation	titanium(9), mild steel(11), stainless steel(16), aluminum(23), magnesium(27)		not available
curing temperature	135℃(curing process) 165℃(post curing process)
