TP series semiconductor strain gages
產品編號:TP
產品描述:with backing and no-backing for selection.
Gauge resistance is 15,30, 6, 120, 350,1000ohms.
產品介紹:
Feature:
TP series semiconductor strain gauge is produced by the international production and process technology. Its
performance is better than similar domestic products, with sensitivity coefficient, mechanical hysteresis, wide resistance range, lateral effect of small properties.
Application:
It is widely used as sense element for transducer manufacturing and engineering stress analysis, Semiconductor strain gauges are not only used for surveying stress distribution, or static measurement for machinery, ships, bridges, aviation, but also used for non-linearity compensation of force transducers.

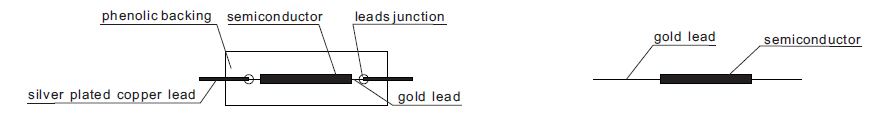

Non-backing semiconductor strain gauges is available for choose.
|
Gauge Pattern
|
Backing L X W (mm)
|
Crystal size(mm)
|
Gauge ResistanceΩ
|
Gauge Factor
|
TCR*(1/℃)
|
TCGF**(1/℃)
|
Working Temp.(℃)
|
working current.(mA)
|
Strain Limit(με)
|
|
TP-5
|
-15
|
6×4，8×4
|
5×0.32×0.05
|
15
|
80±5％
|
<0.06％
|
<0.10%
|
<80
|
20
|
6000
|
|
-30
|
6×4，8×4
|
5×0.32×0.05
|
30
|
80±5％
|
<0.06％
|
<0.10%
|
<80
|
20
|
6000
|
|
-60
|
6×4，8×4
|
5×0.32×0.05
|
60
|
100±5％
|
<0.08％
|
<0.12%
|
<80
|
15
|
6000
|
|
-120
|
6×4，8×4
|
5×0.30×0.05
|
120
|
110±5％
|
<0.15％
|
<0.15%
|
<80
|
15
|
6000
|
|
-350
|
6×4，8×4
|
5×0.28×0.04
|
350
|
130±5％
|
<0.35％
|
<0.28%
|
<80
|
10
|
6000
|
|
-1000
|
6×4，8×4
|
5×0.24×0.04
|
1000
|
150±5％
|
<0.40％
|
<0.30%
|
<80
|
5
|
6000
|
|
TP-3.8
|
-15
|
5×3
|
3.8×0.24×0.05
|
15
|
80±5％
|
<0.06％
|
<0.10%
|
<80
|
20
|
6000
|
|
-30
|
5×3
|
3.8×0.24×0.05
|
30
|
80±5％
|
<0.06％
|
<0.10%
|
<80
|
20
|
6000
|
|
-60
|
5×3
|
3.8×0.24×0.05
|
60
|
100±5％
|
<0.08％
|
<0.12%
|
<80
|
15
|
6000
|
|
-120
|
5×3
|
3.8×0.24×0.04
|
120
|
100±5％
|
<0.15％
|
<0.15%
|
<80
|
15
|
6000
|
|
-350
|
5×3
|
3.8×0.22×0.05
|
350
|
130±5％
|
<0.35％
|
<0.28%
|
<80
|
10
|
6000
|
|
-1000
|
5×3
|
3.8×0.22×0.05
|
1000
|
150±5％
|
<0.40％
|
<0.30%
|
<80
|
5
|
6000
|
|
TP-3
|
-350
|
5×3
|
3×0.20×0.04
|
350
|
130±5％
|
<0.35％
|
<0.28%
|
<80
|
10
|
6000
|
|
-1000
|
5×3
|
3×0.20×0.04
|
1000
|
150±5％
|
<0.40％
|
<0.30%
|
<80
|
5
|
6000
|
|
TP-2.6
|
-1000
|
5×3
|
2.6×0.20×0.04
|
1000
|
150±5％
|
<0.40％
|
<0.30%
|
<80
|
5
|
6000
|
Note:
*TCR= temperature coefficient of resistance@32℃
**TCGF temperature coefficient of resistance@32℃

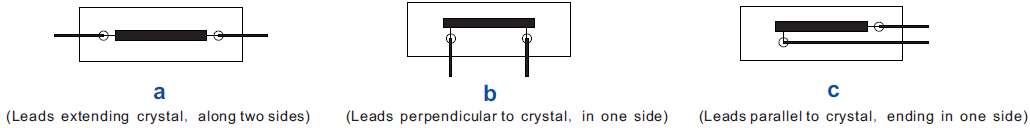

Three types of lead wire ( the default is “a” type wire lead)
※Ordering code: Gauge pattern-backing/ no backing – gauge resistance –lead wire
