Product Show

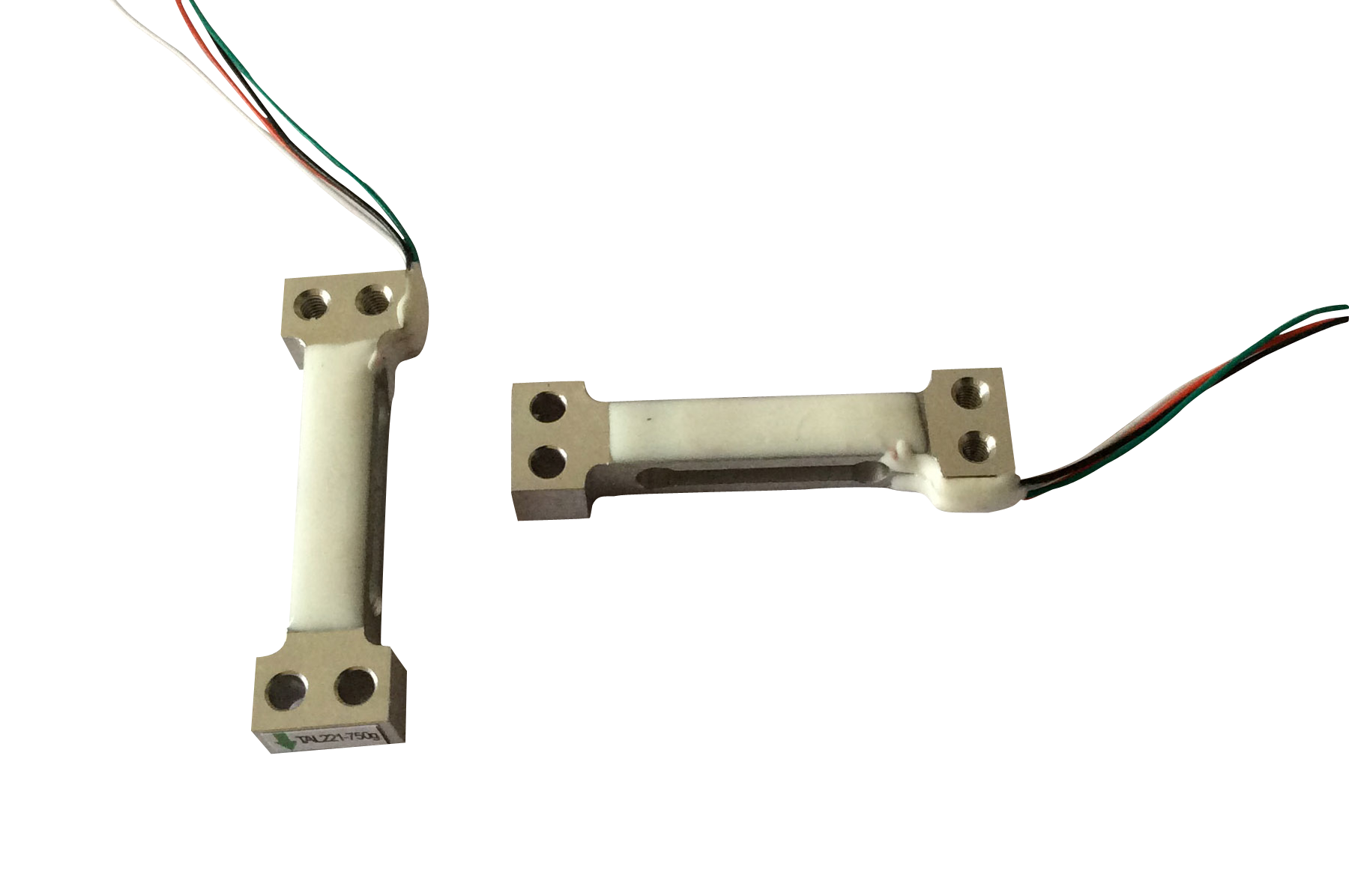

TAL221 Miniature load cell

Product Numbers:TAL221

Product description:Features: ◆Capacity ： 100~750g ◆Material: aluminum-alloy ◆Type: Parallel beam type ◆Defend grade: IP65 ◆Application : body scales, hand scales, kitchen scales,postal scales, fishing scales, baby body scales and other micro electronic weighing systems.

Inquiry

INTRODUCTION:

Capacity
100, 150, 200	g	0.6 ± 0.15 mV/V
300,500,750	g	0.7 ± 0.15 mV/V
1000,1500	g	1.0 ± 0.15 mV/V
Accuracy	%FS	0.05
Recommend excitation	Vdc	≤6

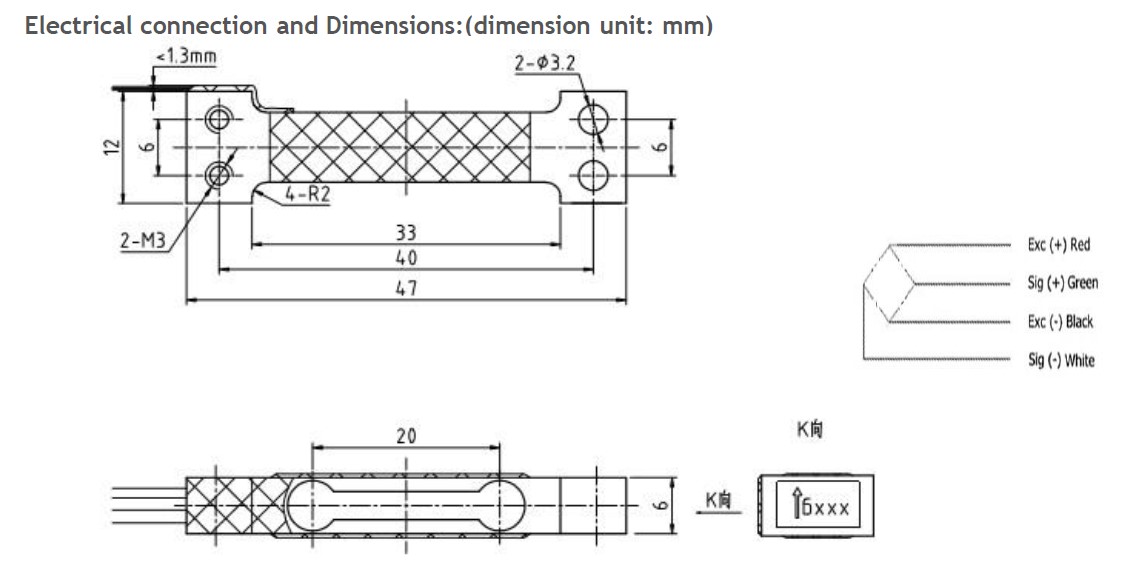

Electrical connection	wire	4 color wire, ?0.6 × 110 mm
