Product Show

TAS501C High accuracy S type load cell

Product Numbers:TAS501C

Product description:Feature: Capacity ：50~5000kg Material: alloy steel C3 Class accuracy Type: compression and tension Defend grade: IP67.

Inquiry

INTRODUCTION:

Capacity	kg	50,100,150,200,250,300,500,1Ton,1.5Ton,2Ton,3Ton,5Ton,7.5Ton
Accuracy class		C3
Rated output	mV/V	2.0± 0.008 or 3.0 ± 0.008
Accuracy	%FS	± 0.008
Recommed excitation	Vdc	5~12 (max 18)

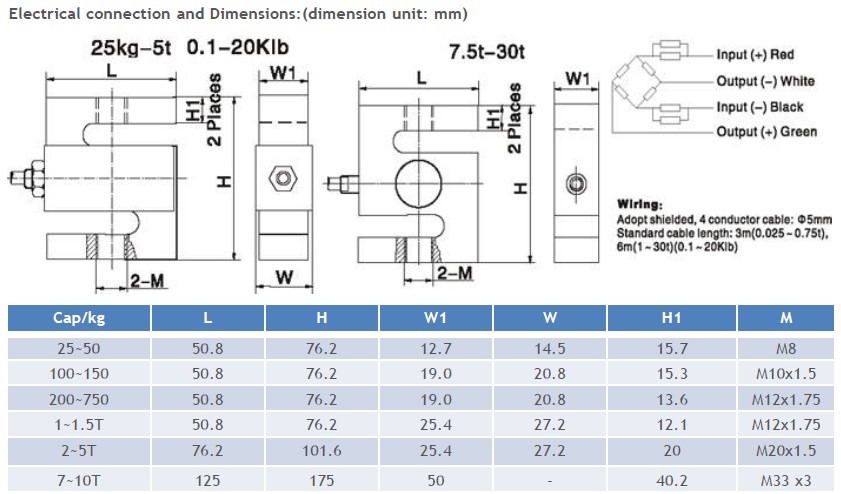

Electrical connection	Cable	4 core shieled PVC cable, 3m
