Product Show

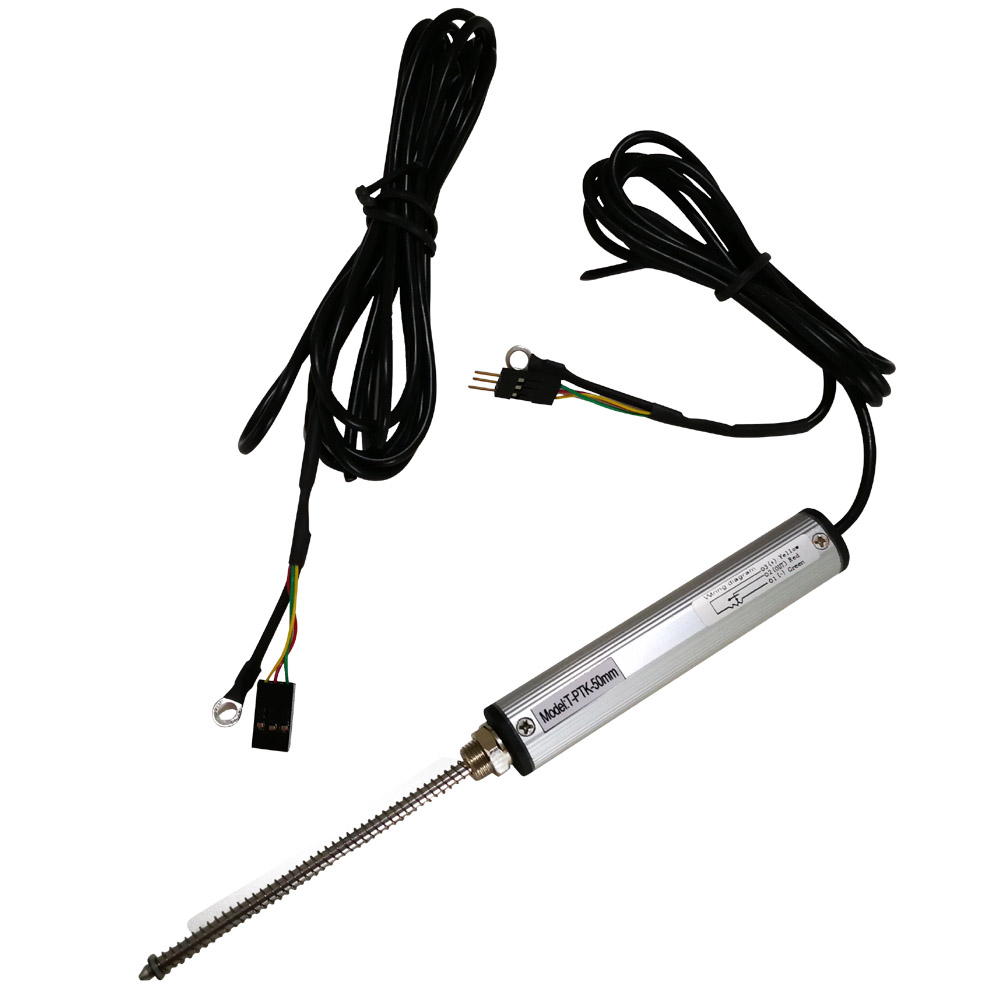

T-PTK Mini Self-recovery linear position sensor

Product Numbers:T-PTK

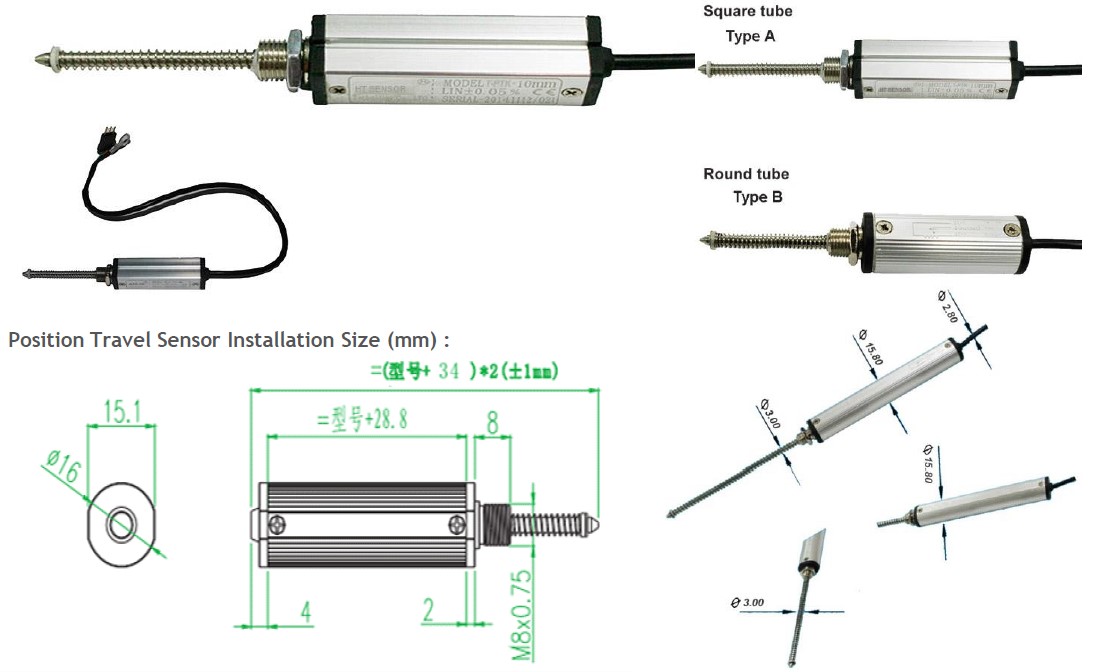

Product description:T-PTK two types A: Square tube. B: Round tube Range: 5mm~300mm Mini self-recovery linear position sensor Application for short range and swinging moments, such like: robots, brick machines, ceramic machines, sluice gate, footwear machines and so on.

Inquiry

INTRODUCTION:

T-PTK range	5mm, 10mm, 15mm, 20mm, 25~100mm
Resistance (±10%)	1ΚΩ, 2ΚΩ, 3ΚΩ, 4ΚΩ, 5ΚΩ
Linear Precision (±%FS)	±0.1
Effective Stroke	range+3mm
Input Voltage	4~5ΚΩ: ≤24Vdc, 2~3ΚΩ: ≤12Vdc, 1ΚΩ: ≤5Vdc
Output	0~100% × input voltage (change with the movement of the rod) resistance output
