HA shear strain gages

產品編號:HA shear strain gages

產品描述:Strain Gages For Precious Transducers

咨詢

產品介紹:

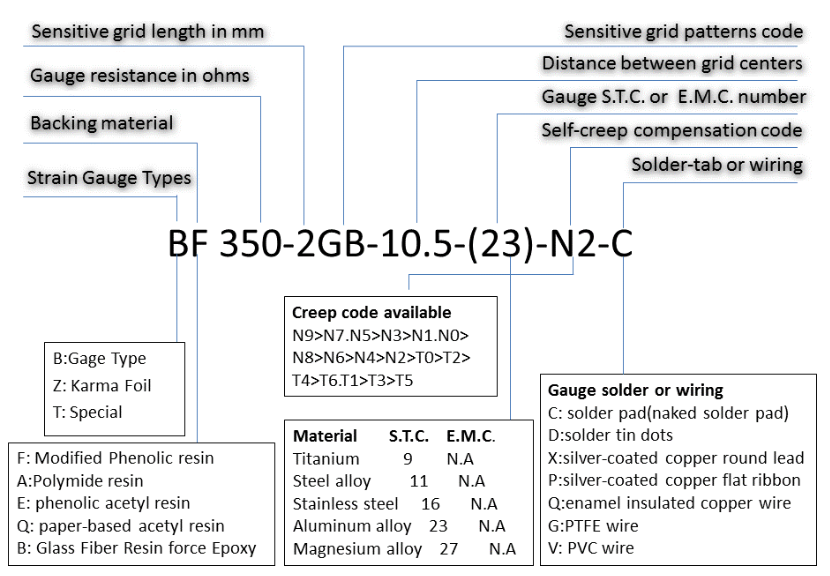

Ordering code:

BF series

BA series

ZF series

modified phenolic resin backing, constantan alloy, encapsulated gauges with temperature compensation and creep compensation; high accuracy, good stability , for manufacturing precision transducers (0.02%FS)

Polyamide resin n constantan alloy, encapsulated gauges with temperature compensation, high elongation, wider operating temperature range, suitable for stress analysis under 150 ℃ and build in 0 . 0 5 % F S accuracy transducers.

modified phenolic resin backing karma alloy encapsulated gauges with temperature compensation and creep compensation(or modulus compensation) high accuracy good

stability, high resistance, small power loss for manufacturing 0.02%FS accuracy transducers.

specification	BF series	BA series	ZF series
nominal resistance(Ω)	3,506,501,000	3,506,501,000	3,506,501,000
tolerance of resistance	<±0.1%	<±0.1%	<±0.1%
gauge factor	2.00~2.20	1.86~2.20	1.86~2.40
gauge factor resistance	<±1%	<±1%	<±1%
strain limit	2.00%	2.00%	2.00%
fatigue life	>10⁷	>10⁷	>10⁸
effective modulus compensation	not available	not available	aluminum(23)
metal foil	constantan alloy	karma alloy	constantan alloy
creep compensation	available	available	available
working temperature range	-30~+80℃	-30~+150℃	-30~+80℃
temperature compensation	titanium(9), mild steel(11), stainless steel(16), aluminium(23), magnesium(27), plexiglass(65)
curing temperature	135℃(curing process) 165℃(post curing process)

MODEL	GRID DIM		BACKING DIM		CREEP
	GRID DIM		BACKING DIM
	L (mm)	W (mm)	L (mm)	W (mm)
BF350-2HA	2.0	3.7	9.0	5.6
BF350-3HA	2.8	5.5	9.7	6.7
BF350-4HA	3.7	6.4	8.5	7.4
BF650-3HA	2.8	4.7	8.8	5.7
BF1000-3HA	2.8	5.5	9.7	6.7
BF1000-4HA	3.8	6.4	8.5	7.4
